Datum alignment
Mounting faces, bores, connector positions and sensing axes are reviewed as one functional relationship.
CUSTOM SENSOR HOUSINGS · DRAWING-LED CNC RFQ
Sensor housings machined around the measurement interface.
Custom sensor bodies and enclosures manufactured around mounting, sealing, connector and measurement interfaces for prototype and repeat production.
- CAD and drawing review
- Sealing features inspected
- Prototype to repeat batches

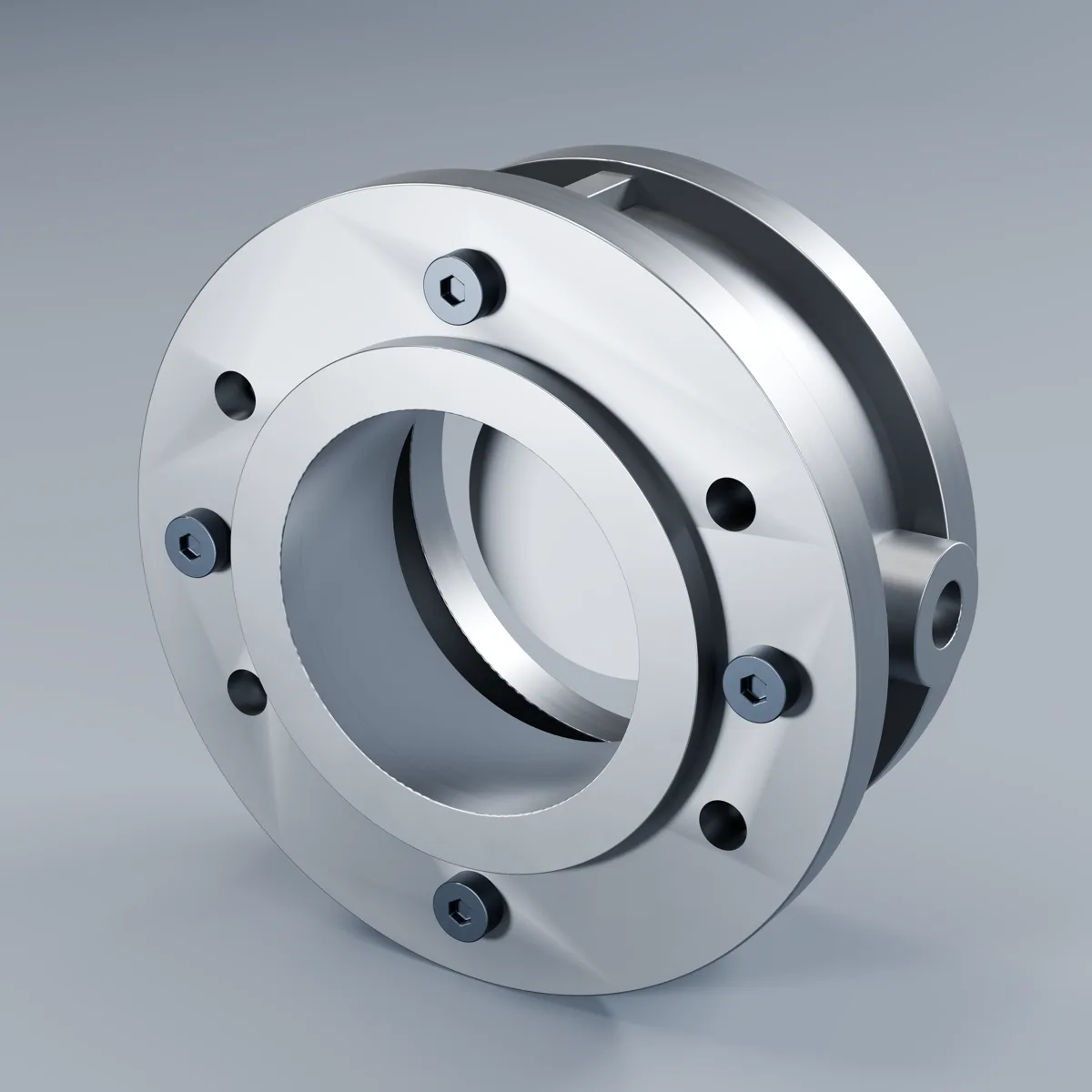

01Force sensor housingInterfaces · thin walls · alignment features
01
CAD and drawing review
02
Sealing features inspected
03
Prototype to repeat batches
About KEC Tour
A manufacturing partner for drawing-controlled metal parts.
KEC Tour supports international OEM and engineering teams with drawing-led CNC machining, technical clarification, surface treatment and agreed inspection evidence.
Learn more about KEC TourWhen you need us
- When fits, datums and interfaces must work together.
- When one supplier must support prototypes and repeat batches.
- When inspection requirements must be clear before machining starts.
Why KEC Tour · Benefits
- Direct engineering drawing review
- Machining, finishing and inspection in one RFQ path
- Revision control for repeatable supply
Representative components
Inspect the features that locate and protect the sensor.
Rotate representative sensor housings in 3D. Your released CAD, drawing, material and inspection requirements control production.
Force sensor housingInterfaces · thin walls · alignment features
Assembly animation
How the Components Fit Together — Illustration
This animation illustrates how individual machined parts interface. It does not represent an offer for a complete robot or ready-to-use assembly.
Real KEC Tour workshop
See the process behind the quote.
Original footage from KEC Tour CNC machining and quality inspection.
Discuss your partDrawing review
Protect measurement accuracy at every interface.
Sealing details
Grooves, threads, wall thickness and surface finish are checked against the specified environment.
Controlled inspection
Critical dimensions, cosmetic zones and documentation are agreed before machining starts.
Material & finish
Specified around the released drawing.
Materials
Finishes
Final alloy, condition, certification, finish, masking and appearance criteria are confirmed during quotation.
Published quality certifications
Quality systems for demanding supply chains.
The certificate files name Dongguan Xuxiang Precision Metal Products Co., Ltd. KEC Tour is the website brand, not the named certificate holder. Ask us to confirm the manufacturing entity, certified site, scope and applicability to your order before relying on these documents.
From drawing to production
From sensor CAD to a traceable machined housing.
- 01
CAD and drawing review
- 02
Interface clarification
- 03
Prototype machining
- 04
Dimensional validation
- 05
Repeat-production release
Engineer FAQ
Questions before requesting sensor housings.
Which files should I send?+
Send STEP or STP files and a dimensioned PDF with material, quantity, finish, sealing details and critical inspection requirements.
Can KEC Tour machine thin-wall sensor bodies?+
Yes, subject to an engineering review of wall thickness, workholding, distortion risk and the required tolerances.
Does KEC Tour supply the sensing electronics?+
No. KEC Tour manufactures custom machined metal housings and structural components from customer drawings.
Drawing-led review
Send Your Robot-Part DrawingPut the measurement-critical housing in front of engineering.
Representative models show relevant part families. Your released drawing controls geometry, material, tolerance, finish and inspection.
