Port relationships
Thread axes, internal bores and mounting datums are checked together before the process route is released.
PRESSURE TRANSMITTER BODIES · DRAWING-LED RFQ
Pressure bodies machined around ports, bores and sealing faces.
Custom transmitter bodies and pressure-sensor housings manufactured from released drawings for prototype and repeat production.
- Pressure interfaces reviewed
- Threads and bores inspected
- Prototype to repeat batches
01Pressure transmitter bodyPorts · bores · sealing interfaces
01
Pressure interfaces reviewed
02
Threads and bores inspected
03
Prototype to repeat batches
About KEC Tour
A manufacturing partner for drawing-controlled metal parts.
KEC Tour supports international OEM and engineering teams with drawing-led CNC machining, technical clarification, surface treatment and agreed inspection evidence.
Learn more about KEC TourWhen you need us
- When fits, datums and interfaces must work together.
- When one supplier must support prototypes and repeat batches.
- When inspection requirements must be clear before machining starts.
Why KEC Tour · Benefits
- Direct engineering drawing review
- Machining, finishing and inspection in one RFQ path
- Revision control for repeatable supply
Representative components
Inspect the interfaces that contain and measure pressure.
Rotate representative pressure components in 3D. Final geometry, material, test pressure and acceptance criteria remain defined by your approved files.

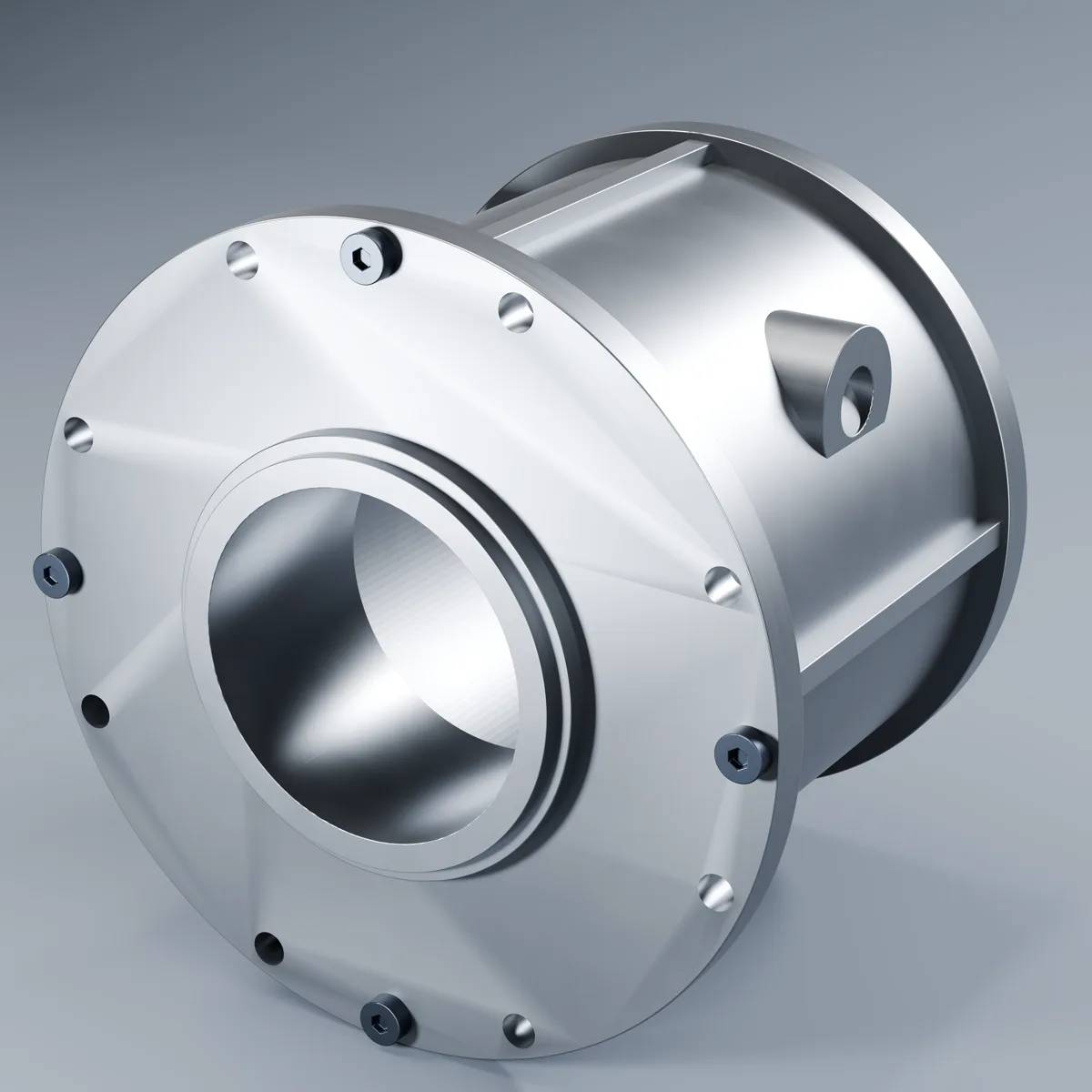

Pressure transmitter bodyPorts · bores · sealing interfaces
Assembly animation
How the Components Fit Together — Illustration
This animation illustrates how individual machined parts interface. It does not represent an offer for a complete robot or ready-to-use assembly.
Real KEC Tour workshop
See the process behind the quote.
Original footage from KEC Tour CNC machining and quality inspection.
Discuss your partDrawing review
Review pressure-critical features as one system.
Sealing surfaces
O-ring grooves, gasket lands and surface finish are tied to the drawing and inspection method.
Test definition
Pressure, duration, medium, cleanliness and reporting requirements are clarified during quotation.
Material & finish
Specified around the released drawing.
Materials
Finishes
Final alloy, condition, certification, finish, masking and appearance criteria are confirmed during quotation.
Published quality certifications
Quality systems for demanding supply chains.
The certificate files name Dongguan Xuxiang Precision Metal Products Co., Ltd. KEC Tour is the website brand, not the named certificate holder. Ask us to confirm the manufacturing entity, certified site, scope and applicability to your order before relying on these documents.
From drawing to production
From pressure-body CAD to verified production.
- 01
CAD and drawing review
- 02
Pressure-interface clarification
- 03
Prototype machining
- 04
Dimensional and test review
- 05
Repeat-production release
Engineer FAQ
Questions before requesting pressure bodies.
What should the RFQ include?+
Include CAD, a dimensioned drawing, alloy, quantity, port standards, operating pressure, sealing method and required tests.
Can leak or pressure testing be included?+
Testing can be reviewed when the method, medium, pressure, duration and acceptance criteria are defined in the enquiry.
Are complete transmitters supplied?+
No. KEC Tour supplies custom machined metal bodies and housings, not complete electronic transmitter assemblies.
Drawing-led review
Send Your Robot-Part DrawingPut the pressure-critical body in front of engineering.
Representative models show relevant part families. Your released drawing controls geometry, material, tolerance, finish and inspection.
