Bearing alignment
Seats, shoulders, shafts and mounting faces are evaluated as a connected tolerance system.
ACTUATOR & JOINT HOUSINGS · DRAWING-LED RFQ
Actuator housings built around alignment, load and repeatable motion.
Joint bodies, reducer housings, motor cases, bearing supports and precision shafts manufactured from your released drawings.
- Bearing relationships reviewed
- Critical fits inspected
- Prototype to repeat batches

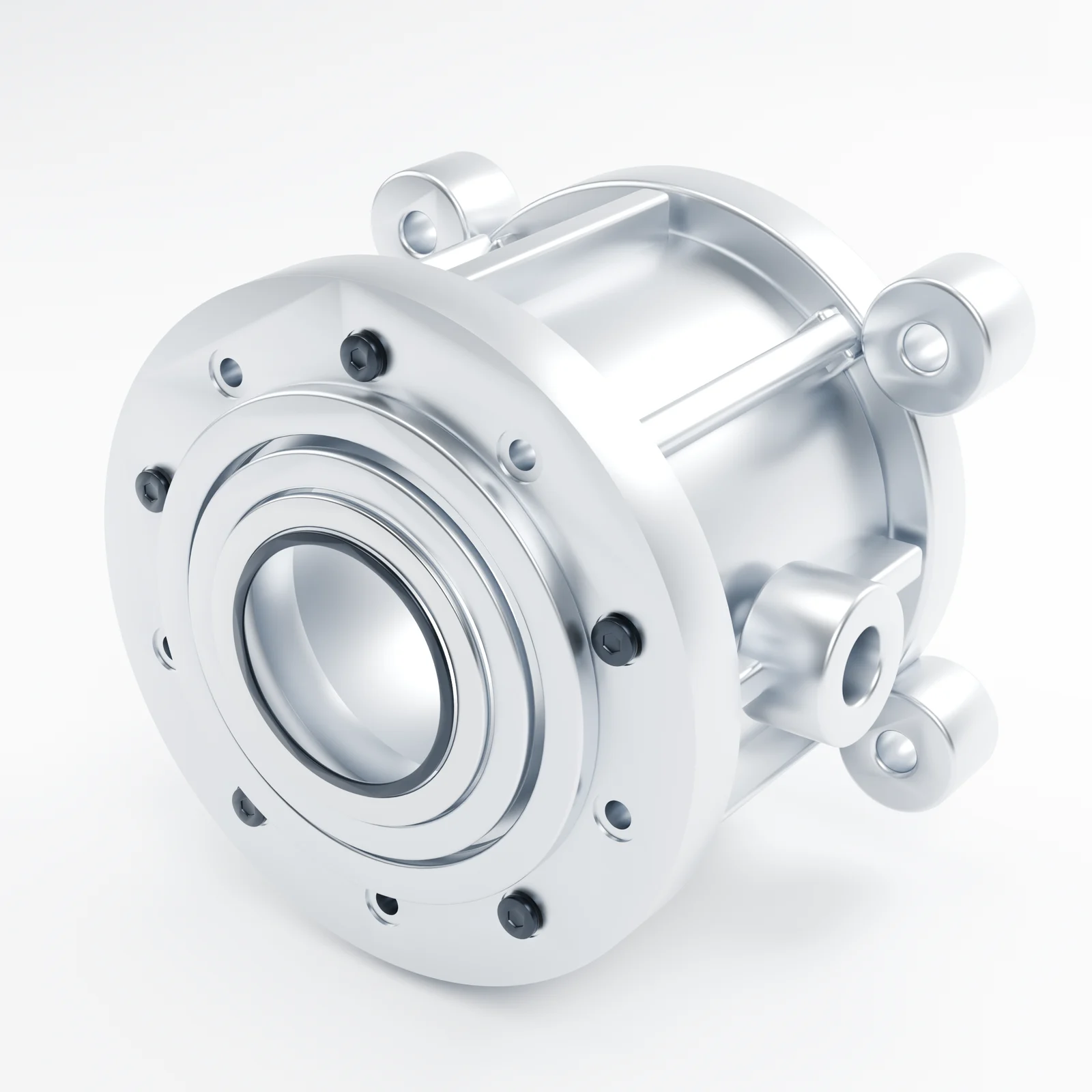

01Actuator joint housingBearing seats · bolt pattern · datum faces
01
Bearing relationships reviewed
02
Critical fits inspected
03
Prototype to repeat batches
About KEC Tour
A manufacturing partner for drawing-controlled metal parts.
KEC Tour supports international OEM and engineering teams with drawing-led CNC machining, technical clarification, surface treatment and agreed inspection evidence.
Learn more about KEC TourWhen you need us
- When fits, datums and interfaces must work together.
- When one supplier must support prototypes and repeat batches.
- When inspection requirements must be clear before machining starts.
Why KEC Tour · Benefits
- Direct engineering drawing review
- Machining, finishing and inspection in one RFQ path
- Revision control for repeatable supply
Representative components
Inspect the relationships that control actuator motion.
Rotate representative actuator components in 3D. Production follows your approved CAD, drawing, material and inspection plan.
Actuator joint housingBearing seats · bolt pattern · datum faces
Assembly animation
How the Components Fit Together — Illustration
This animation illustrates how individual machined parts interface. It does not represent an offer for a complete robot or ready-to-use assembly.
Real KEC Tour workshop
See the process behind the quote.
Original footage from KEC Tour CNC machining and quality inspection.
Discuss your partDrawing review
Keep load-bearing interfaces aligned.
Rigid structure
Walls, ribs, pockets and workholding access are balanced against stiffness and distortion.
Repeatable assembly
Fits, fastener patterns, revision control and inspection evidence are confirmed before repeat batches.
Material & finish
Specified around the released drawing.
Materials
Finishes
Final alloy, condition, certification, finish, masking and appearance criteria are confirmed during quotation.
Published quality certifications
Quality systems for demanding supply chains.
The certificate files name Dongguan Xuxiang Precision Metal Products Co., Ltd. KEC Tour is the website brand, not the named certificate holder. Ask us to confirm the manufacturing entity, certified site, scope and applicability to your order before relying on these documents.
From drawing to production
From actuator CAD to a controlled motion component.
- 01
CAD and drawing review
- 02
Fit and datum clarification
- 03
Prototype machining
- 04
Dimensional validation
- 05
Repeat-production release
Engineer FAQ
Questions before requesting actuator housings.
Which actuator parts can KEC Tour machine?+
Custom metal joint bodies, reducer housings, motor cases, bearing supports, structural brackets and precision shafts.
Can bearing fits and concentric bores be inspected?+
Yes. Identify the critical fits, datum structure and reporting requirements in the drawing or RFQ.
Does KEC Tour supply a complete actuator?+
No. KEC Tour supplies custom machined components, not motors, bearings, electronics or complete actuator systems.
Drawing-led review
Send Your Robot-Part DrawingPut the alignment-critical housing in front of engineering.
Representative models show relevant part families. Your released drawing controls geometry, material, tolerance, finish and inspection.
